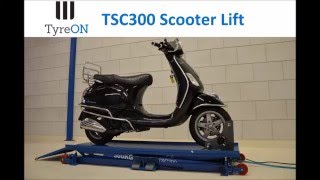

Novi TyreON TSC300 scooter lift - mobile dizalica za motocikl

The price is excluding VAT and delivery costs.
Capacity 300 kg
Lifting height 18 - 120 cm
Table LxW 180 x 57 cm
Drive 0.75 kW Electric-hydraulic
Type Fully automatic, pneumatically unlocked
► Air required
► Powerunit under the table
► Moving ramp
► Pneumatic wheel clamp (foot operated)
► Rear wheel panel 20 cm wide
Comes with Hydraulic oil + wheel clamp
Packed L192 x B70 x H70 cm - 275 kg
Voltage 230V

All-round professional mobile scooter lift table suitable for motorbikes and motorcycles, scooters, mopeds and motorised bicycles.
Foot pedals for lifting, lowering and operating the pneumatic front wheel clamp. Valve for air tools and anti-slip profile on the ramp and the table.
Professional scooter lift table - ramp slides underneath
The TyreON TSC300 is a handy scooterlift lift for two-wheelers with a weight of up to 300 KG.
A silent powerful built-in E-motor ensures a comfortable hydraulic lifting.
Save time with easy placement, whereby any user can experience the professional choice.
Reliable and powerful scooter lift - CE certified
1 year warranty on all parts
Solid construction and equipped with 2 eyes for hooking tension straps
Finished with powder coating, attractive and functional
Filled with hydraulic oil and tested before packaging
A small air compressor is required
Mobile and pre-drilled with anchoring holes
Delivered ready for operation, easy to install yourself
Fits any group in the fuse box - connection 9 Amps (230V)
With air connection, cord and plug - Plug and Go!
TyreON TSC300 - Fully Automatic scooter lift
Professional compact version with solid construction and silent electric motor
There are two foot pedals on both sides for lifting and lowering
Powerful hydraulic lifting cylinder that works quietly and smoothly
Pneumatic wheel clamp with large working range
Extra foot pedal for operating the wheel clamp
Anti-slip profile on the lift table and on the ramp
Lifting table with folding panel for dismantling the rear wheel
The ramp automatically slides under the table while lifting
Additional air valve for air tools
For easy moving, the lift has four wheels including a parking position
Security - TyreCARE
Automatic height protection at 1.2 meters
Mechanical safety lock every 4 cm
Automatic pneumatic release of the safety lock when descending
The mechanical lock prevents slipping back in the event of a hose break
Aluminum electric motor with cooling fins and a fan
Scooter lift + TyreCARE - All parts are also available after the warranty period
The capabilities of the TyreON TSC300 scooter lift table
Technical details
Lifting capacity 300 kg
Lifting height 120 cm
Minimum height 18 cm
Length of the table 180 cm
Width of the table 57 cm
Size of the rear drop panel (L x W) 44 x 19,5 cm
Length of the ramp  50 cm
Duration lifting / lowering 15 / 15 sec.
Adjustable lifting power / lowering speed ✓ / -
Mechanical safety lock  ✓
Unlocking the safety lock automatic
Height protection (auto-stop) ✓
Wheel-clamp pneumatic
Operation lifting table  foot pedal
Operation wheel clamp foot pedal
Type of ramp slides fully away under the table
Number of foldable panels 1
Number of removable panels  -
Position hydraulic pomp-unit under the table
On-floor / In-floor  ✓ / -
Air connection for pneumatic tools ✓
Anti-slip profile on ramp / on table ✓ / ✓
Slots for tie down support  ✓
Standard supplied with motor jack -
Standard supplied with wheel stopper  -

Additional information
Voltage / Phase / Frequency 230 / 1 / 50  Volt / phase(s) / Hz
Power electric engine 0,75 kW
Circuit protection  9 Ampère
Required air pressure  6 - 8 bar
Weight scooter lift 265  kg
Required floorspace 185 x 60 cm  (excl. ramp of 50 cm)
Scooter lift - delivery includes
The TyreON TSC300 scooter lift table is tested for all functions in our factory before it is packed with;

The ramp
The pneumatic front wheel clamp
The 4 wheels, factory assembled
The Installation and operating manual
Hydraulic oil (filled with hv-iso-32)
TSC300 scooter lift - mobile
