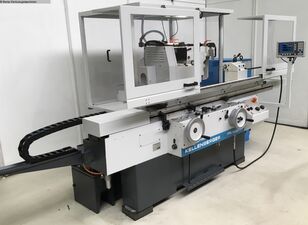

KELLENBERGER 1500U BEMA Economic mašina za brušenje metala

PDF
KELLENBERGER 1500U BEMA Economic mašina za brušenje metala
KELLENBERGER 1500U BEMA Economic mašina za brušenje metala slika 2
KELLENBERGER 1500U BEMA Economic mašina za brušenje metala slika 3
Zainteresovani ste za oglas?
Kontaktirajte prodavca
1/3
PDF
Cijena:
na upit
Zatražite cijenu
Kontaktirajte prodavca
Tip mašina za brušenje metala
Lokacija Njemačka Kirchheim
Datum objavljivanja više od 1 mjeseca
Kataloški broj prodavca 1056-6181
Stanje
Stanje polovne
Dodatne informacije
Boja bijeli
Dodatne informacije
Engleski
Machine in stock: Yes
brand: KELLENBERGER
Cylindrical grinding machine - Universal
KELLENBERGER
1500U BEMA Economic
grinding diameter: 250,350,450 mm
grinding length: 1500mm
centre height: 125,175,225 mm
grinding wheel diameter: 400mm
grinding wheel width: 50 mm
bore: 127 mm
MK5
work piece spindle speed: 20-400 U/min
workpiece spindle -bore: mm
grinding head swivelling: 360 °
grinding spindlehead - swivable: 180 + - °
grinding spindle speed: 1500,1700,2200U/min
0,001-0,030 mm/Ø
0-0,95 mm/Ø
± 6°
longitudinal feed of the table: 1750 mm
table speeds:0,02-6 m/min
130 kg
130 inkl. Spannugkg kg
mm
grinding depth: mm
80 mm
total power requirement:6,5 kW
weight of the machine ca.: 2,9 t
dimensions of themachine ca.: 5,6 x 2,0 m
As the world’s leading company inKellenberger overhaul and retrofit we are not
only able todeliver machines in a quality similar to a new machine and with
warranty
but we can also offer you the service for yourmachines
Overhauled with geometric KELLENBERGERprotocoll
Standard with
New electriccabinet
New motor for the workpiecespindlehead
2-axisDRO
Paper filtration
Fotos of a delivered (1000U)machine with following optiones against extra
charge
protection doors
tailstock versionAdvance. In this case with micro-adjusting
handwheel of theversion Advance
More options on request
DRO forswivel angle of workpiecespindlehead
DRO for B63074 swivel angleof grinding wheel head
Internal spindle holder with bore up to100mm
Max center height of 225mm
More KELLENBERGERmachines
pokazati kontakte
Die Werkzeugmaschineentspricht zum derzeitigen Zeitpunkt nicht den
grundlegendenSicherheits- und Schutzanforderungen wie in der BetrSichV 2015
genannt
Eine Anhebung des erforderlichenMindest-Schutzzieles ist mittels einer
Gefährdungsbeurteilungnach BetrSichV zu ermitteln
seller offer No. resale 1056-6181
Prikaži cijeli komentar
Važno
Ova ponuda је informativnog karaktera. Za više detalja, pitajte prodavca.
